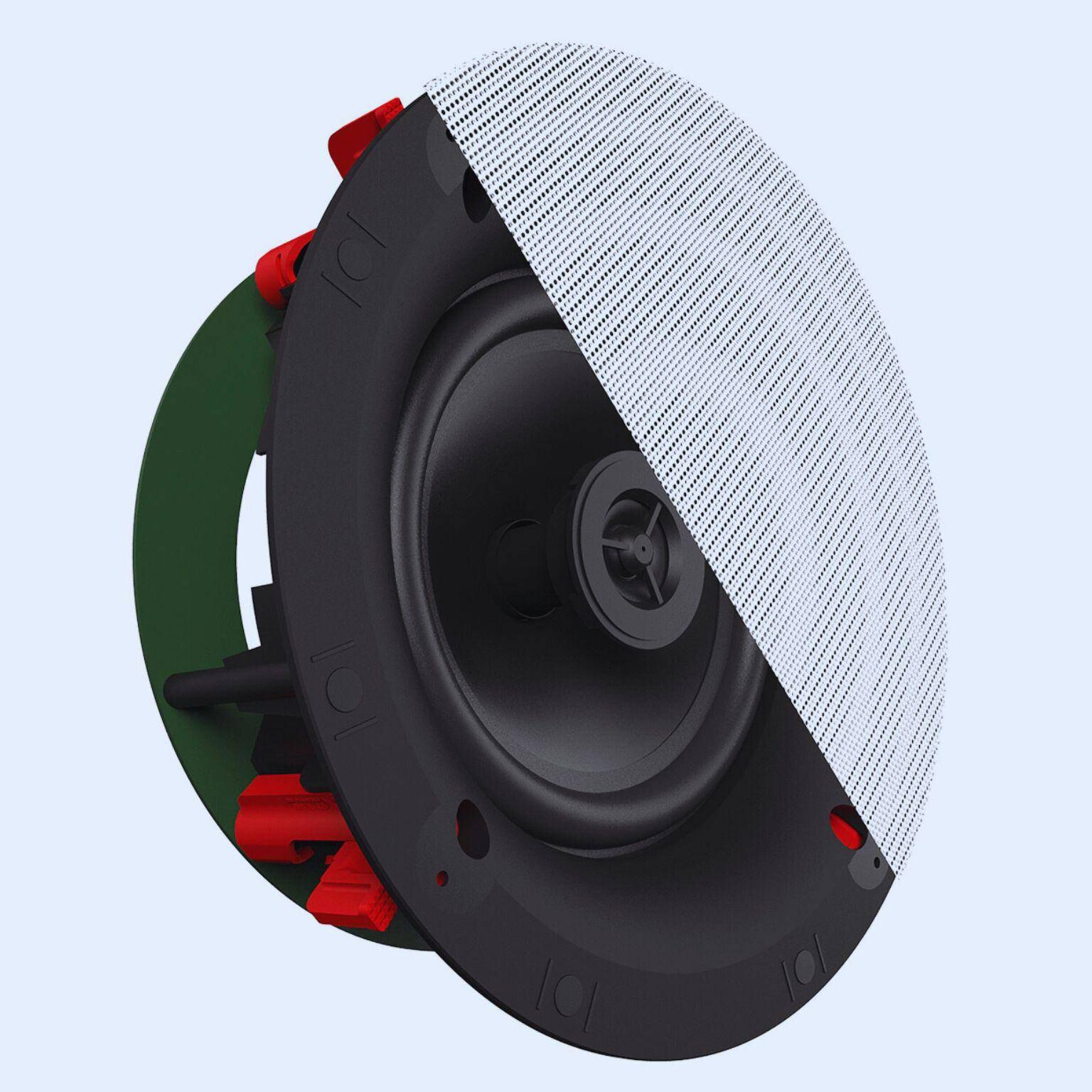

HORN-LOADED PERFORMANCE Using the same Tractrix® horn technology and design principles of our more premium architectural and box speaker lines, the all new Klipsch Designer series delivers true Klipsch power and performance. With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-160C brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system. EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.
| FREQUENCY RANGE | 65Hz-20KHz +/- 3dB |
| PRODUCT DIMENSIONS | 9.2” W x 9.2” H x 4.09” D (233mm H x 233mm W x 104mm D) |
| POWER HANDLING | 50W RMS / 200W RMS |
| COVERAGE ANGLE | 100° |
| SENSITIVITY | 91 dB @ 2.83V / 1m |
| LOW FREQUENCY DRIVER | 6.5” (165.1mm) Polypropylene Woofer |
